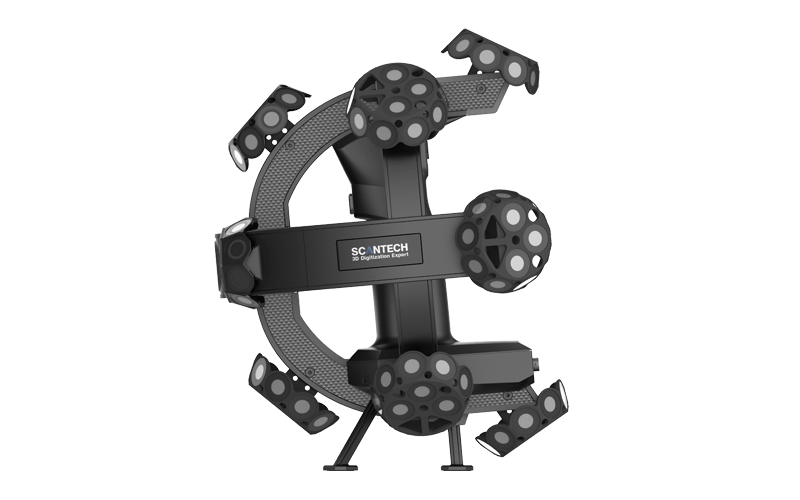

TrackScan Sharp-S
Wireless, Large-Scale 3D Scanner
The TrackScan Sharp-S excels in precise measurements over long distances with high speed. It features a tracking distance of up to 8.5 metres and a volumetric range of 135 m³. Combining wireless freedom of movement with 99 laser lines and a measurement rate of up to 4.86 million measurements per second, the TrackScan Sharp-S delivers precise and reliable results efficiently.
Download TrackScan Sharp-S Brochure
TrackScan Sharp-S Streamlines Manufacturing Processes
The TrackScan Sharp-S is a cutting-edge wireless large-scale 3D scanner designed for precision and efficiency.
Ultra-Fast 3D Measurements
With a formidable scanning rate of 4.86 million measurements per second and a scanning window of 800 x 700mm, the TrackScan Sharp-S excels in rapidly capturing 3D data. Its precision is unmatched, boasting an accuracy of up to 0.048mm.
Groundbreaking 3D Scanning Volume
The TrackScan Sharp-S employs a dynamic adaptive LED algorithm and long-distance depth of field, supporting a maximum tracking distance of 8.5 metres. With an expansive measurement volume of 135 m³ and an effective measurement range of 233 m³, the TrackScan Sharp-S eliminates the need for frequent tracker repositioning, enabling efficient measurement of large components from a single position.
Unprecedented Wireless 3D Scanning Freedom
The TrackScan Sharp-S sets a new benchmark with its wireless 3D scanning capabilities, providing unmatched freedom of movement without cables. This feature significantly enhances operational flexibility and efficiency, ensuring precise data capture in any environment.
TrackScan Sharp-S Features
Intelligent Edge Detection
Powered by gray-value measurement and an auxiliary light module, users can inspect features like holes, slots, rectangles, rivets, and edges in different finishes with precision. The TrackScan-Sharp S enables the rapid capture of hole positions and diameters.
Extreme Power: 81 Blue Laser Lines
The TrackScan Sharp-S harnesses the power of 81 blue laser lines, including 17 parallel laser lines, to achieve up to 4.86 million measurements per second. This cutting-edge technology enables rapid scanning of large areas while capturing intricate details like slots and angles with remarkable precision, ensuring accurate and comprehensive 3D digital models.
Innovative CFFIM Technology
The TrackScan Sharp-S 3D scanner utilises Continuous Fibre Filament Injection Moulding (CFFIM) technology, resulting in a lightweight yet robust structure. This advanced design withstands thermal variations, ensuring stable, high-precision measurements. Its innovative ergonomic structure allows users to grip the scanner from any direction, enabling technicians to handle and position it freely.
Need More Information?
Accessories
i-Probe
TrackScan Sharp-S can be paired with a portable CMM i-Probe (optional with different sizes) to measure inaccessible areas such as holes and hidden points. This contact measurement probe can ensure precise results with high single-point repeatability of 0.030 mm.
TrackScan-Sharp S Technical Specification
| Type | TrackScan-Sharp S | ||
|---|---|---|---|
| Scan mode | Ultra-fast scanning | 81 blue laser lines | |
| Scan mode | Hyperfine scanning | 17 blue parallel laser lines | |
| Scan mode | Deep hole scanning | 1 blue laser line | |
| Accuracy | 0.025 mm | ||
| Measurement rate | 4,860,000 measurements/s | ||
| Scanning area | 800 mm x 700 mm | ||
| Laser class | Class II (eye-safe) | ||
| Resolution | 0.020 mm | ||
| Volumetric accuracy | 10.4 m³ (Tracking distance 3.5 m) | 0.048 mm | |
| Volumetric accuracy (With MSCAN-L15 photogrammetry system) | 35 m³ (Tracking distance 5.2 m) | 0.069 mm | |
| Volumetric accuracy (With MSCAN-L15 photogrammetry system) | 95 m³ (Tracking distance 7.2 m) | 0.128 mm | |
| Volumetric accuracy (With MSCAN-L15 photogrammetry system) | 135 m³ (Tracking distance 8.5 m) | 0.159 mm | |
| Portable CMM T-Probe | Single point repeatability | 0.030 mm | |
| Stand-off distance | 300 mm | ||
| Depth of field | 400 mm - 800mm | ||
| Output formats | .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customised | ||
| Operating temperature range | -10°C ~ 40°C | ||
| Interface mode | USB 3.0, Network Interface | ||
