NIMPROBE
Probing without Limits
A fully wireless, lightweight design. Built for high-precision measurement, it brings together the best of both probing and large field scanning modes in one innovative solution.
Get the highlights.
Wireless Freedom
The Wireless NIMPROBE, with a 500-mm probe length, easily accesses reference holes, hidden points, and other hard-to-reach areas. Intelligent occlusion compensation algorithm ensures accurate results even when some of its markers are blocked.
This makes it the perfect choice for measuring automotive parts, aerospace components, pipelines and machinery, all with the freedom of a wireless configuration.
No cables. No mechanical joints. No limits.
Accuracy when you need it most

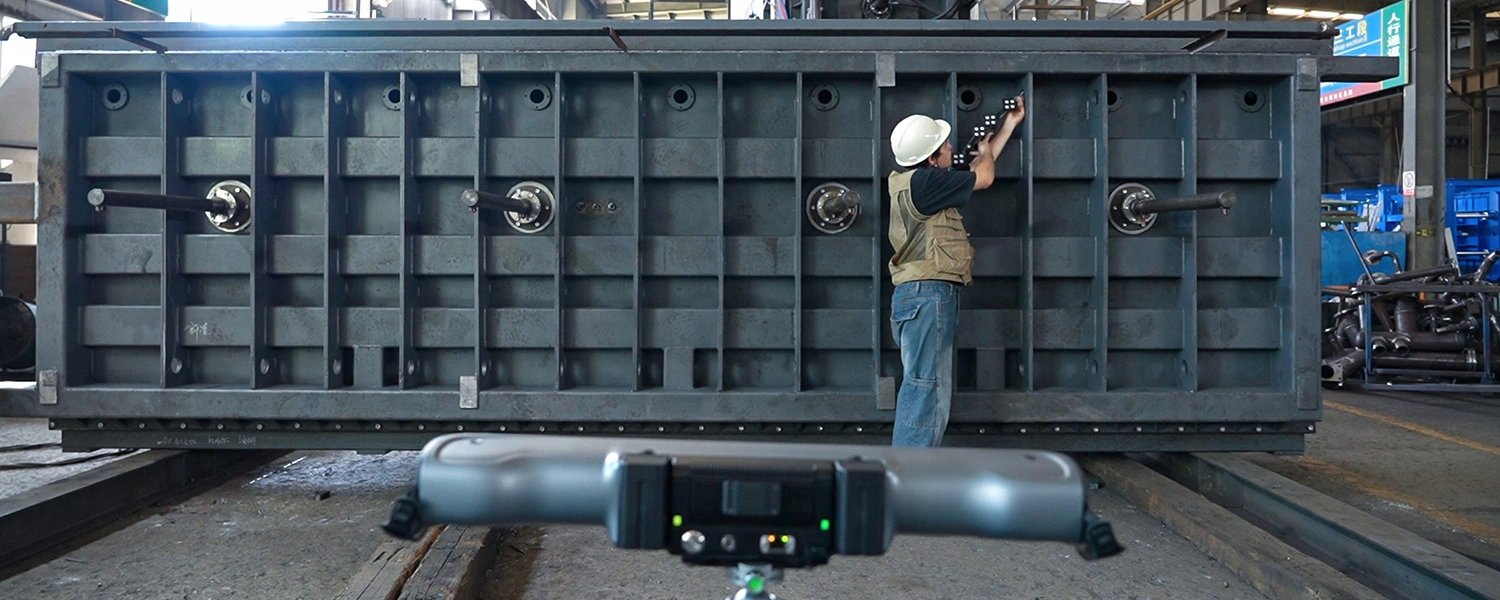

When combined with i-Tracker, which has a large field-of-view, i-Probe can measure parts in a distance of up to 4.2 meters in a single position. With advanced optical sensors and cutting-edge algorithms, the system precisely captures geometric features and GD&T, making it ideal for efficient 3D measurement of large-scale parts with metrology-grade precision.
Extensive and Precise Measurement

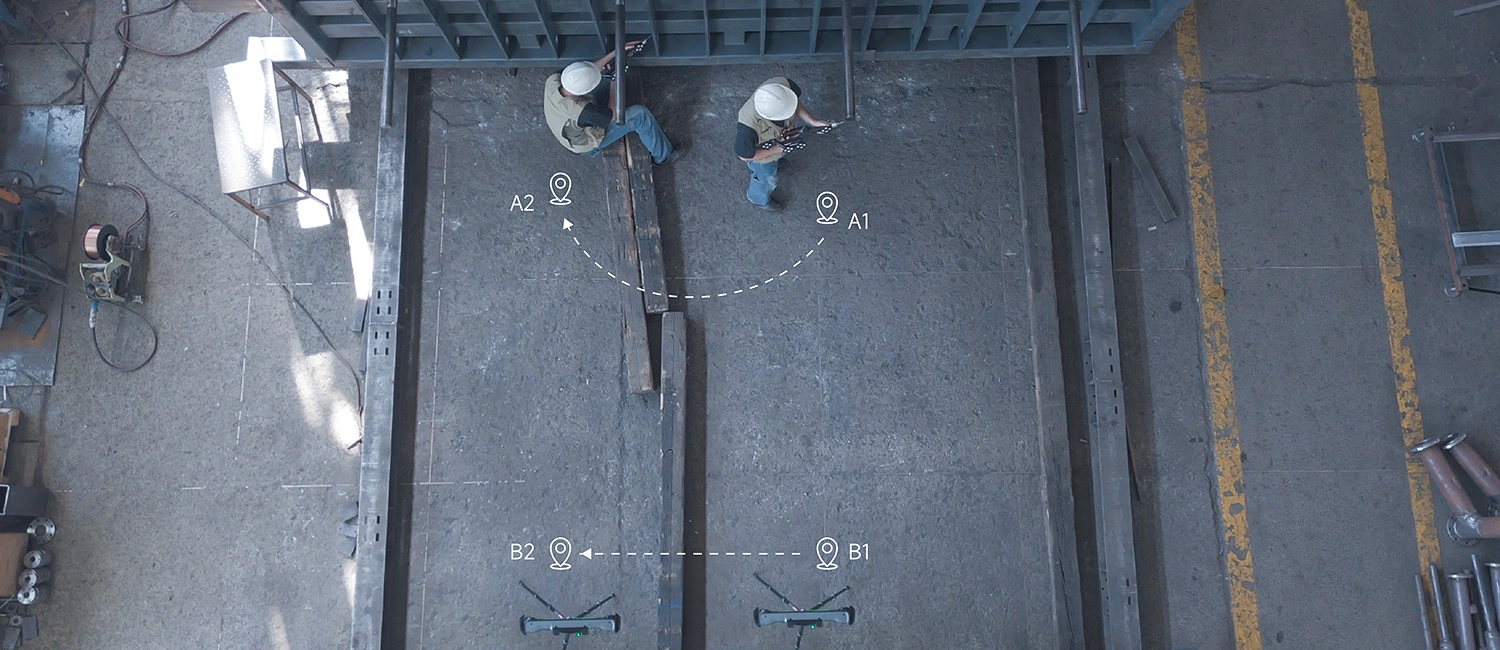

With only a few markers, you can switch positions effortlessly. Whether it’s cross-station measurement, multi-angle probing, or inspection along dynamic production lines, NimProbe adapts instantly and keeps inspection cycles moving fast.
NIMPROBE Key Features

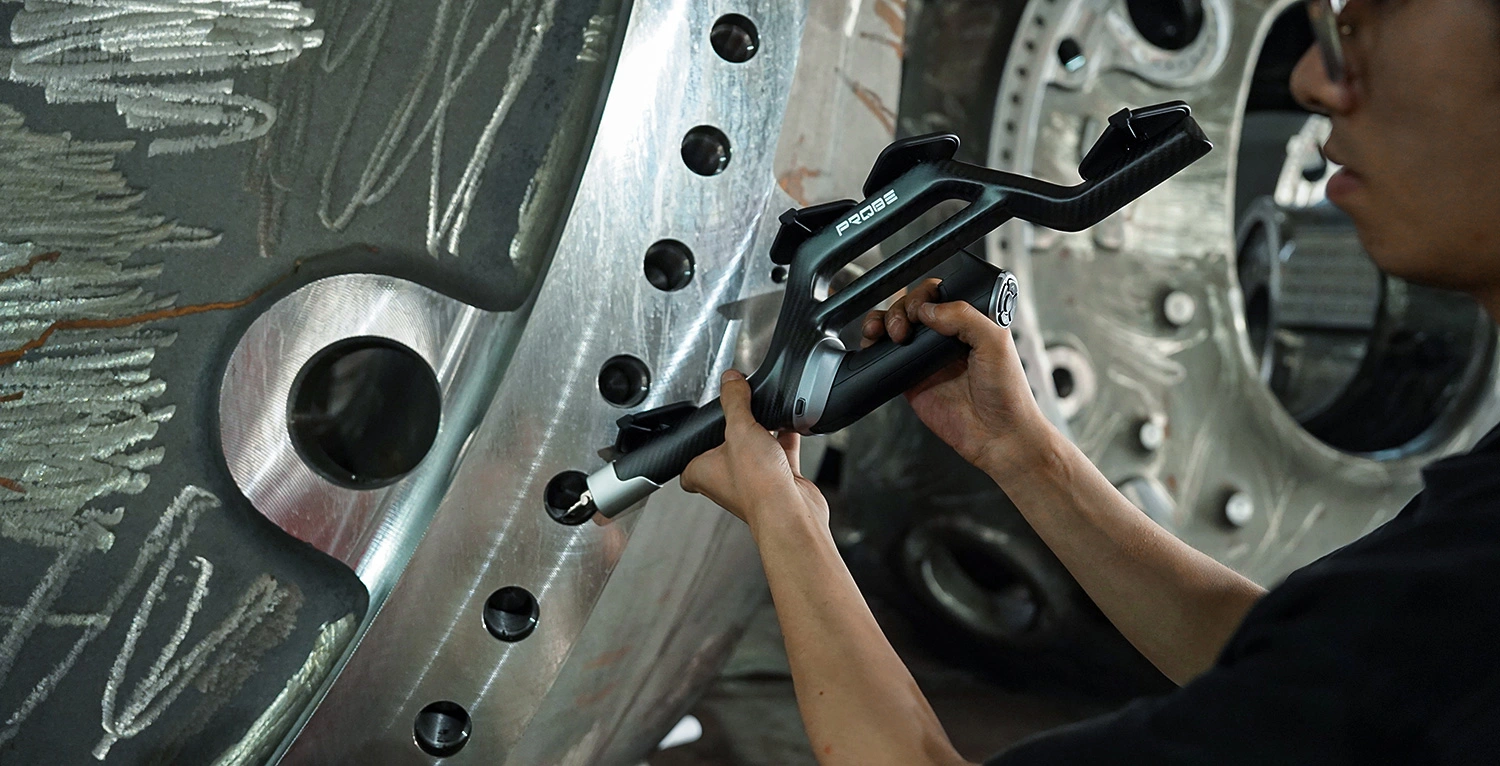

Metrology-Grade 3D Measurement
Seamless Probing to Scanning
NimProbe redefines measurement efficiency with the power of two-in-one — merging high-precision probing with handheld laser scanning. Capturing point clouds with speed and precision, it switches effortlessly between scanning and probing to handle any measurement task with ease. NimProbe streamlines inspection workflows and adapts seamlessly to third-party platforms.
Compact & Portable

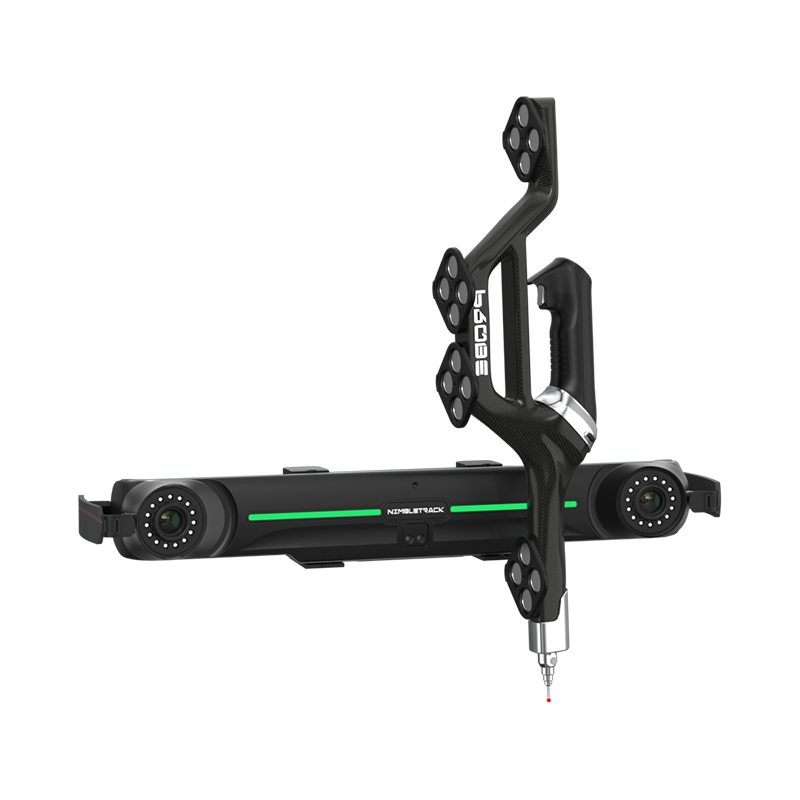

NIMPROBE is a compact, portable industrial 3D probing system engineered for flexibility and precision. Its lightweight, ergonomic design allows the complete probing and scanning solution to be packed neatly into a single protective case, making on-site measurement, inspection, and quality control faster, easier, and more efficient.
Interested in The NIMPROBE Compact Wireless 3D Probing Solution?
Technical Specifications
| Type | NimProbe |
|---|---|
| Volumetric accuracy(1) |
0.059 mm (3.5 m) 0.072 mm (4.2 m) |
| Measurement distance (per tracker) | 4.2 m |
| Part size range (recommended) | 0.1 m – 6 m |
| Dimensions of i-Probe | 510 × 145 × 89 mm |
| Weight of i-Probe | 700 g |
| Operating temperature range | 0 – 45 °C |
| Operating humidity (non-condensing) | 10 % – 90 % RH |
| Connection | Wired and Wireless |
| Number of targets | 16 |
| Patents | ZL201520680513.1, ZL202210065778.5, ZL202221475584.4, ZL202221766958.8, ZL202320545878.8 |
|
(1) Complies with ISO 10360-2 standard.
|
|
