TRACKSCAN SHARP-Z
Reach Further.
Reposition Less.

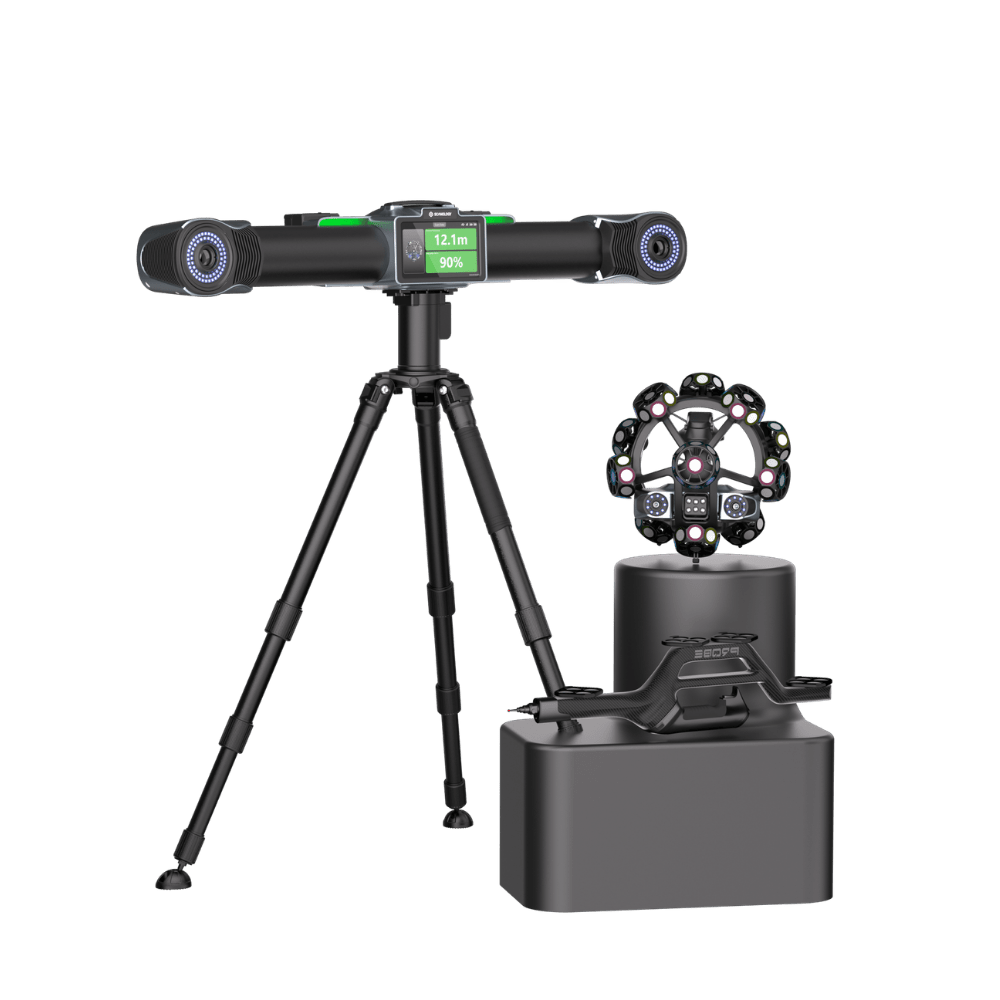

A fully wireless, self-tracking optical 3D scanning system designed for fast, precise measurement of large and extra-large components.
Get the highlights.
Track Further

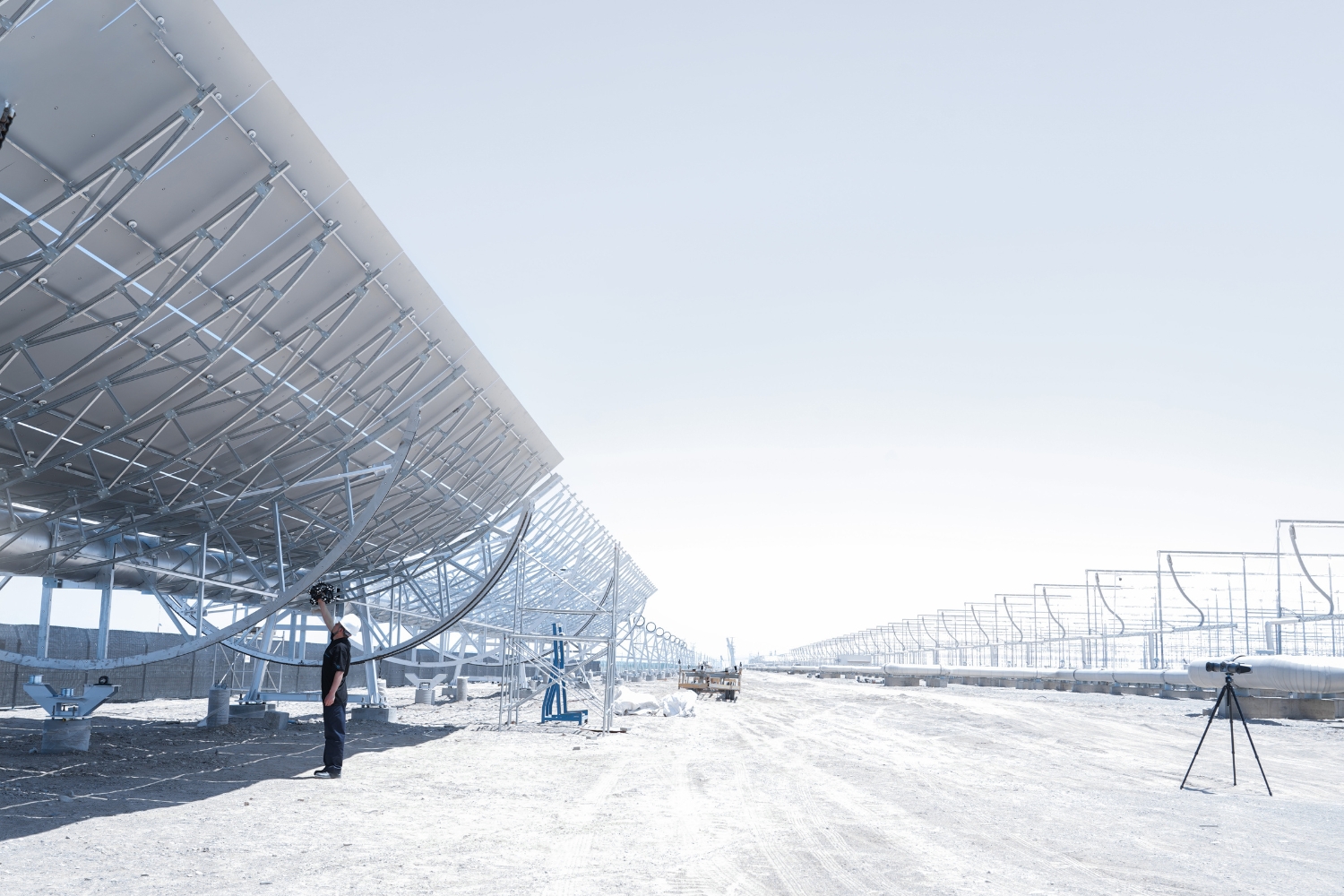

With up to 12 m tracking distance, TrackScan Sharp-Z covers large workpieces from farther away, reducing repeated tracker repositioning.
Reposition Less

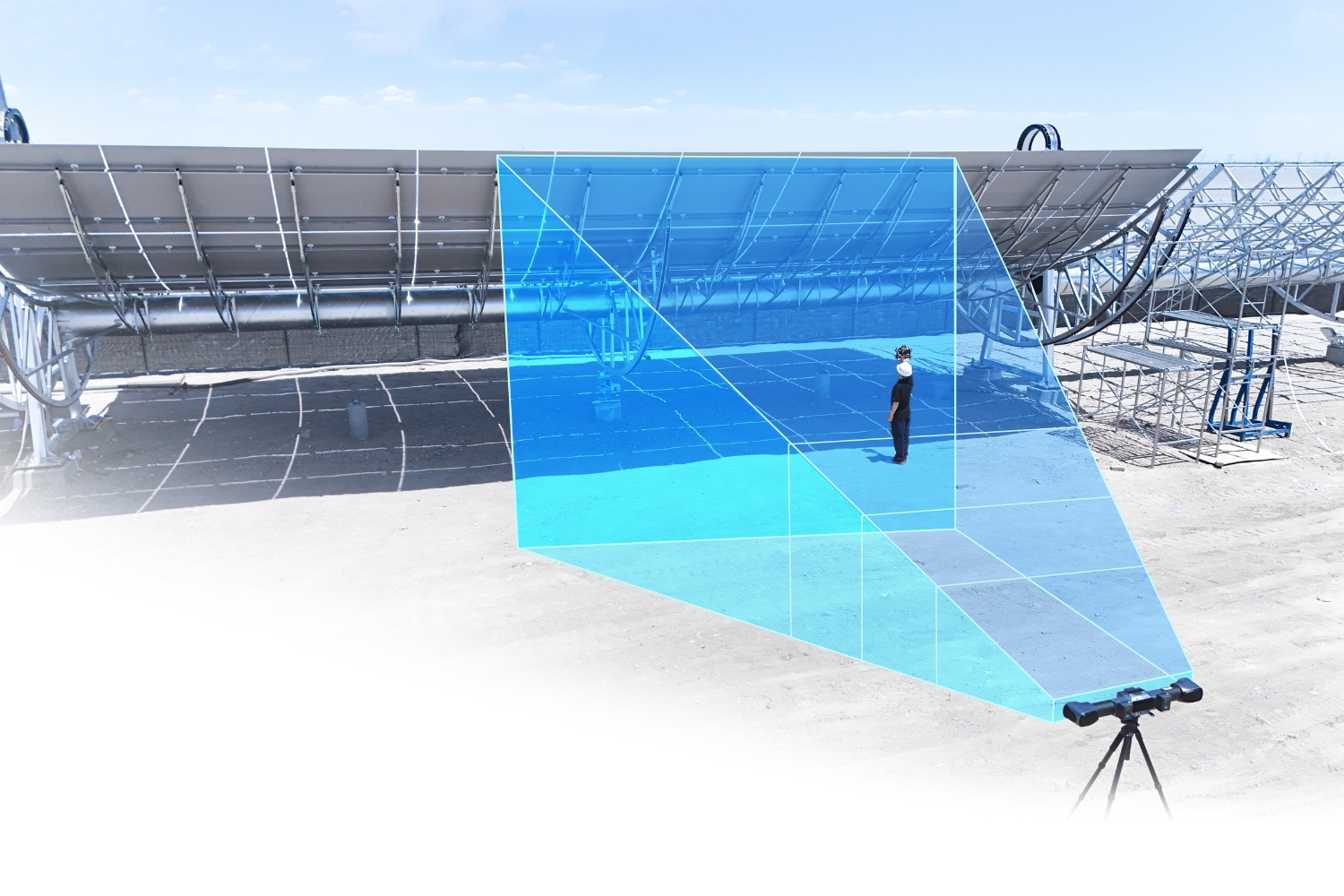

The dynamic rotary tracker automatically follows the scanner, helping to maintain an optimal field of view as the operator moves around a large component.
Dual Screens, Intuitive Interaction

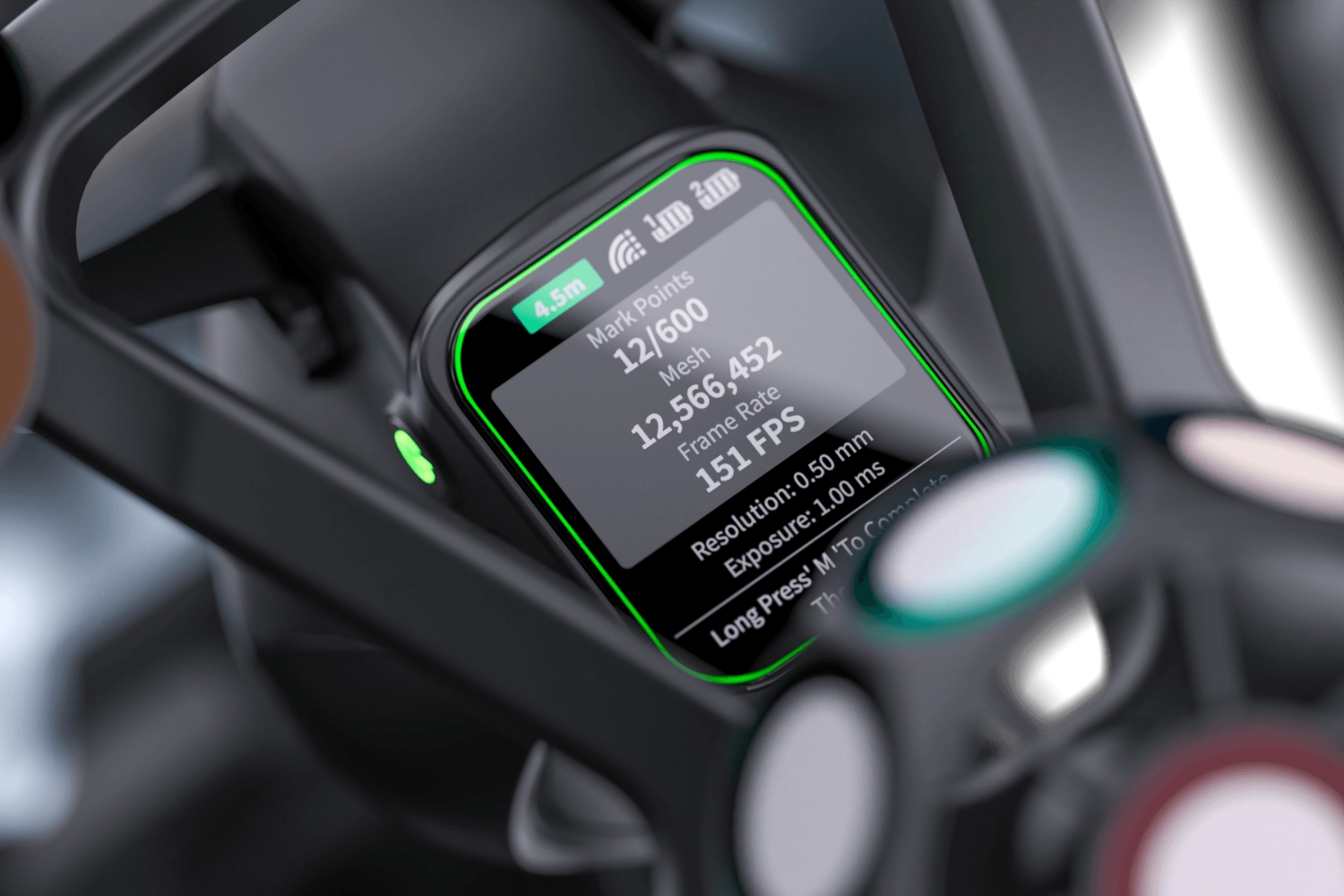

Built-in displays provide real-time visibility of device status, calibration information and probe measurements throughout the measurement process.
High-speed measurement
Efficiency meets detail.

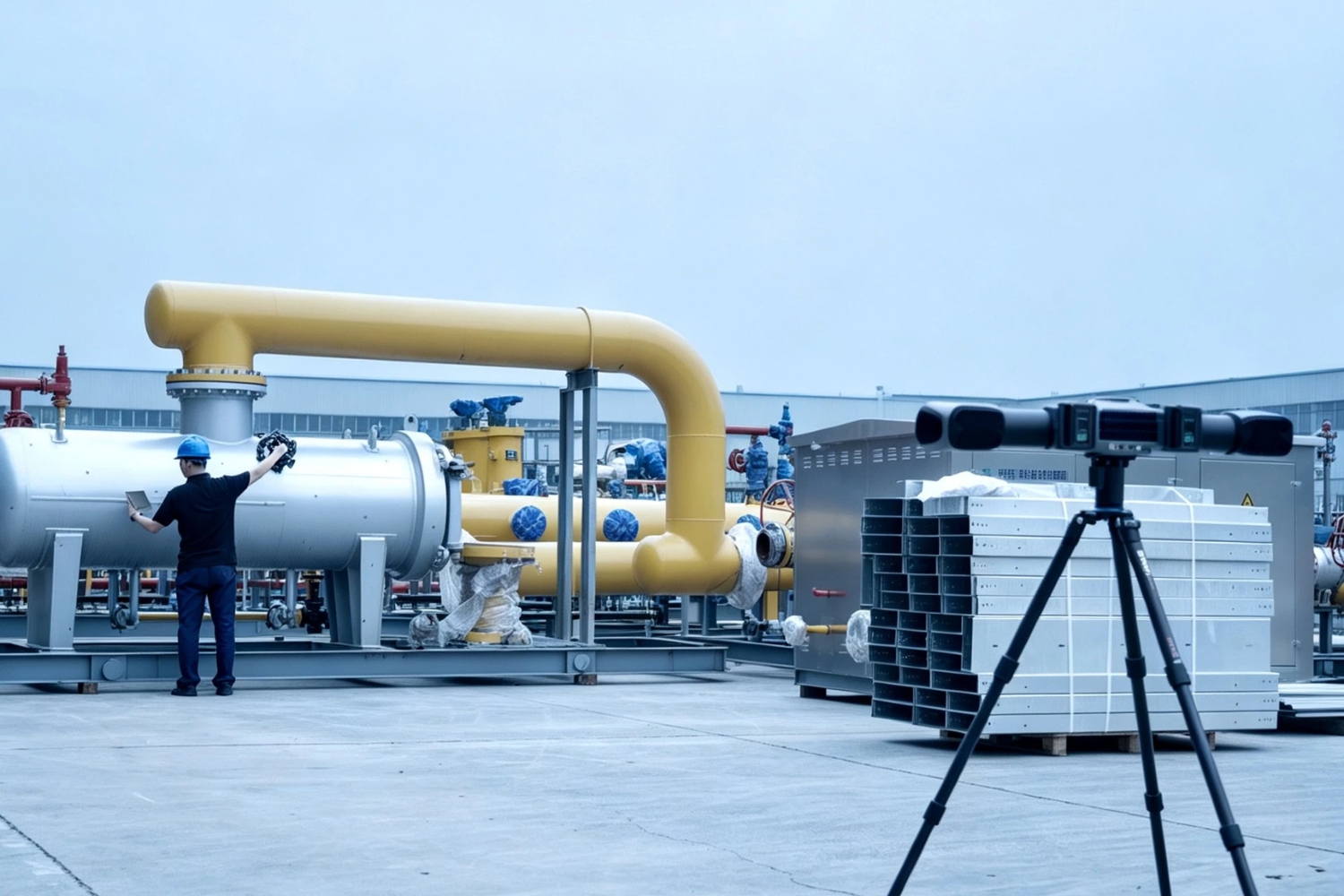

TrackScan Sharp-Z combines quad-cross blue laser technology with high-speed data capture, helping teams measure extra-large components quickly while retaining the detail needed for inspection.
Versatile data capture

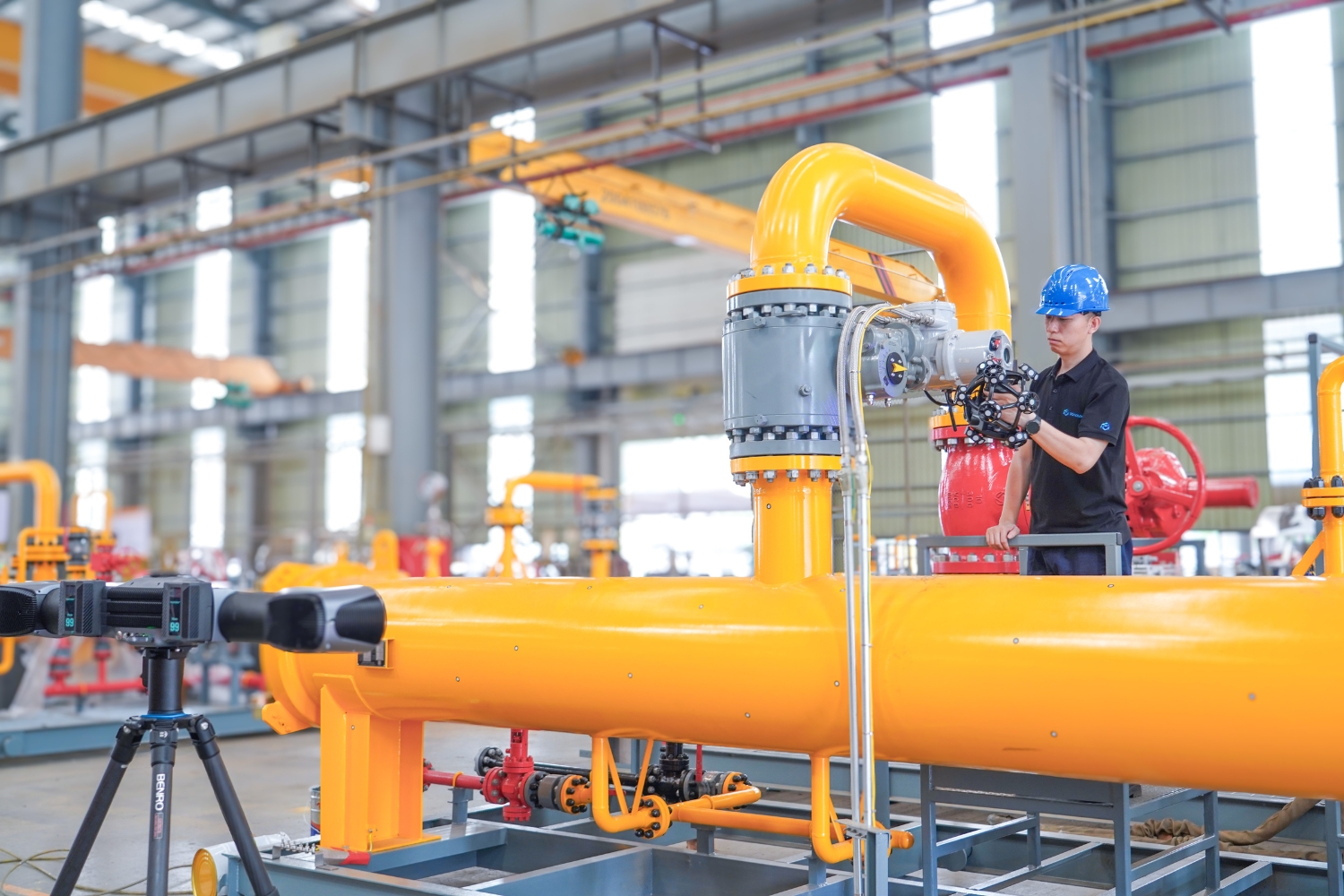

Four scanning modes. One system.
Move between rapid coverage, fine-detail capture, recessed features and extended-depth measurement without changing systems.
Ultra-Fast Scanning
140 blue laser lines in a quad-cross configuration for rapid surface coverage.
Extended-Depth Scanning
Quad-cross scanning with an extended depth of field for large or varying geometry.
Hyperfine Scanning
21 blue parallel laser lines for precision surfaces and fine detail.
Deep-Hole Scanning
An additional blue laser line for recessed and hard-to-reach features.
Made for measurement on site
Built to keep you moving.
Fewer cables and fewer interruptions give operators greater freedom around large components and complex measurement environments.
Fully wireless scanning
Free to move. Ready to measure.

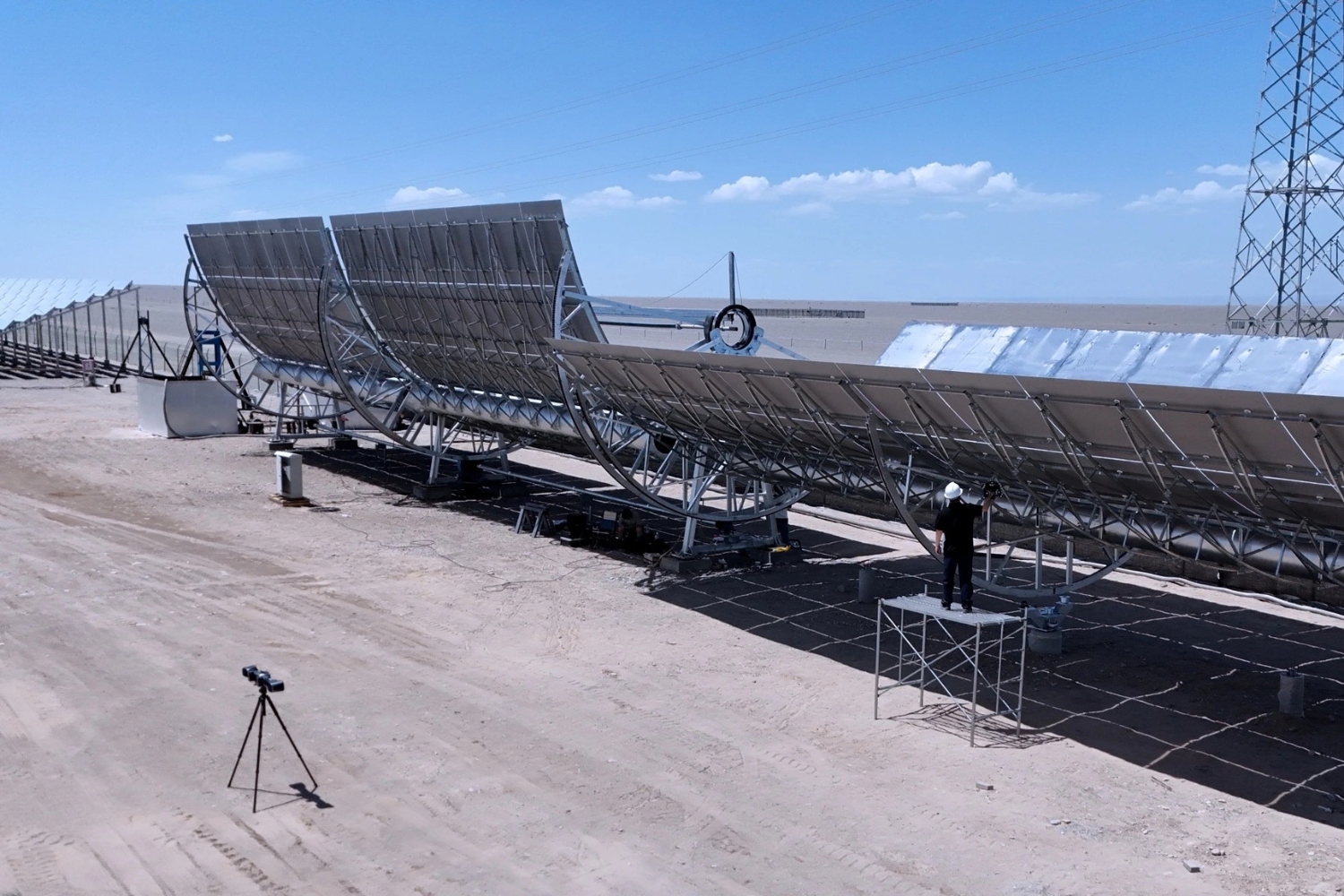

Edge computing on both the scanner and tracker works with high-speed wireless data transmission to remove cable constraints. Operators can move more freely around large workpieces while maintaining an efficient, high-precision scanning workflow.
- Edge computing built into both the scanner and tracker
- High-speed wireless data transmission
- Greater flexibility across large and complex measurement areas
Continuous operation
Keep measuring without the downtime.

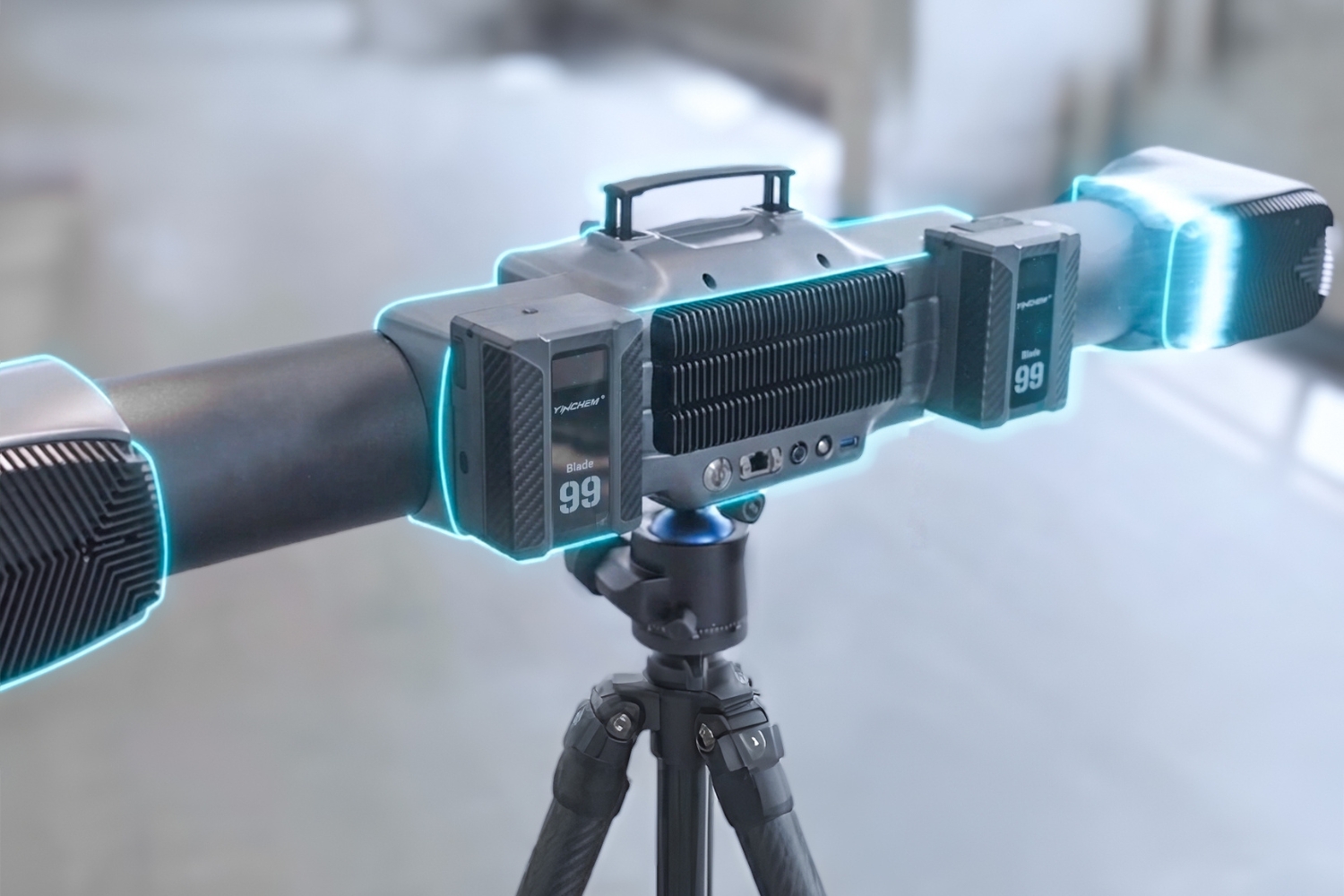

Dual battery compartments in both the scanner and tracker support hot-swappable battery changes, helping teams continue measuring without stopping the job to recharge.
Intuitive operation. Reliable results.
Simple to operate. Built to be trusted.
Thoughtful controls help streamline measurement on site, while metrology-grade construction and multi-metric accuracy control support confidence in every result.
Customisable buttons
Your most-used functions, one touch away.

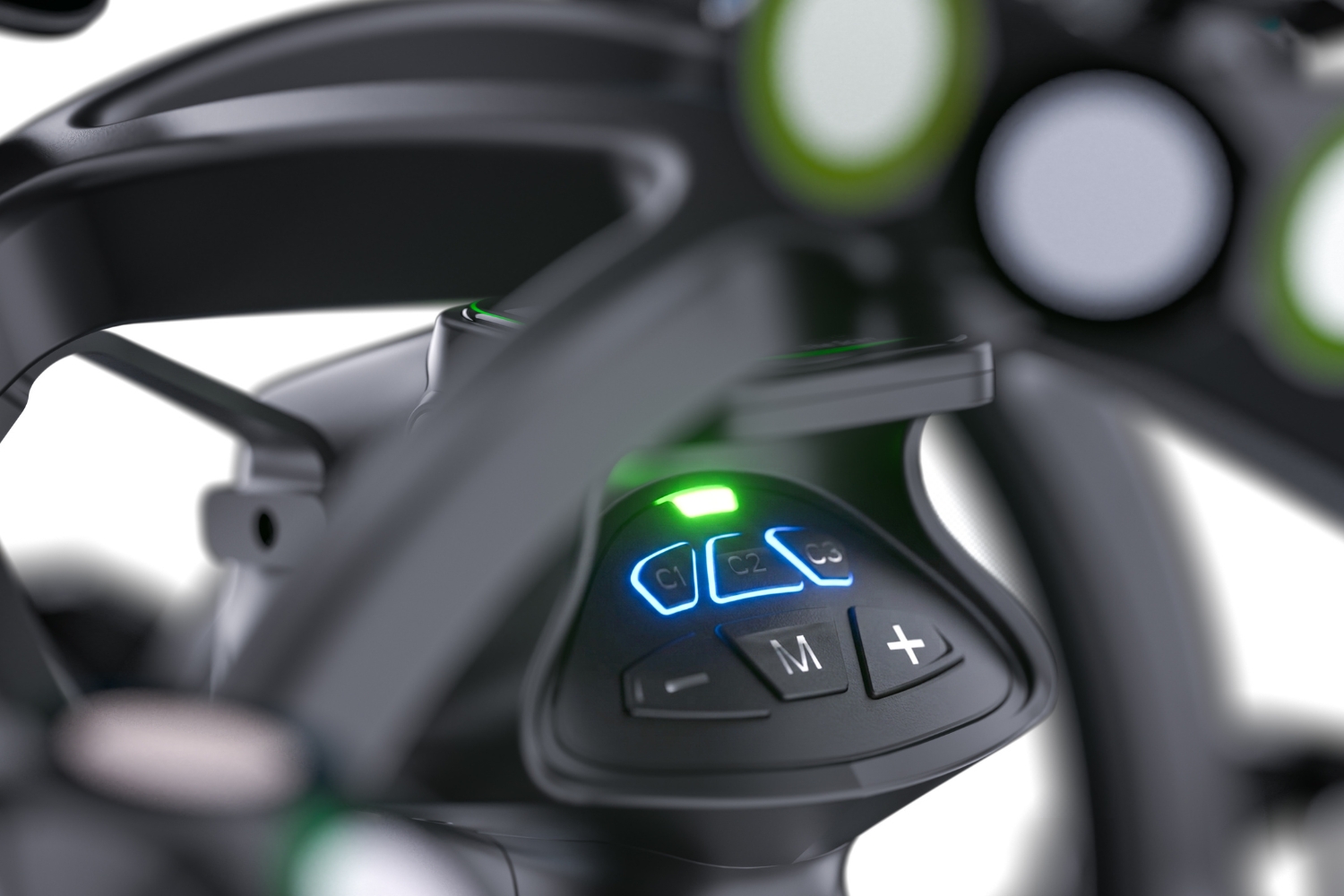

Programmable buttons provide direct access to frequently used functions. This reduces repetitive steps and menu switching, helping operators maintain a smoother on-site measurement workflow.
Industrial-grade accuracy
Confidence built into every measurement.

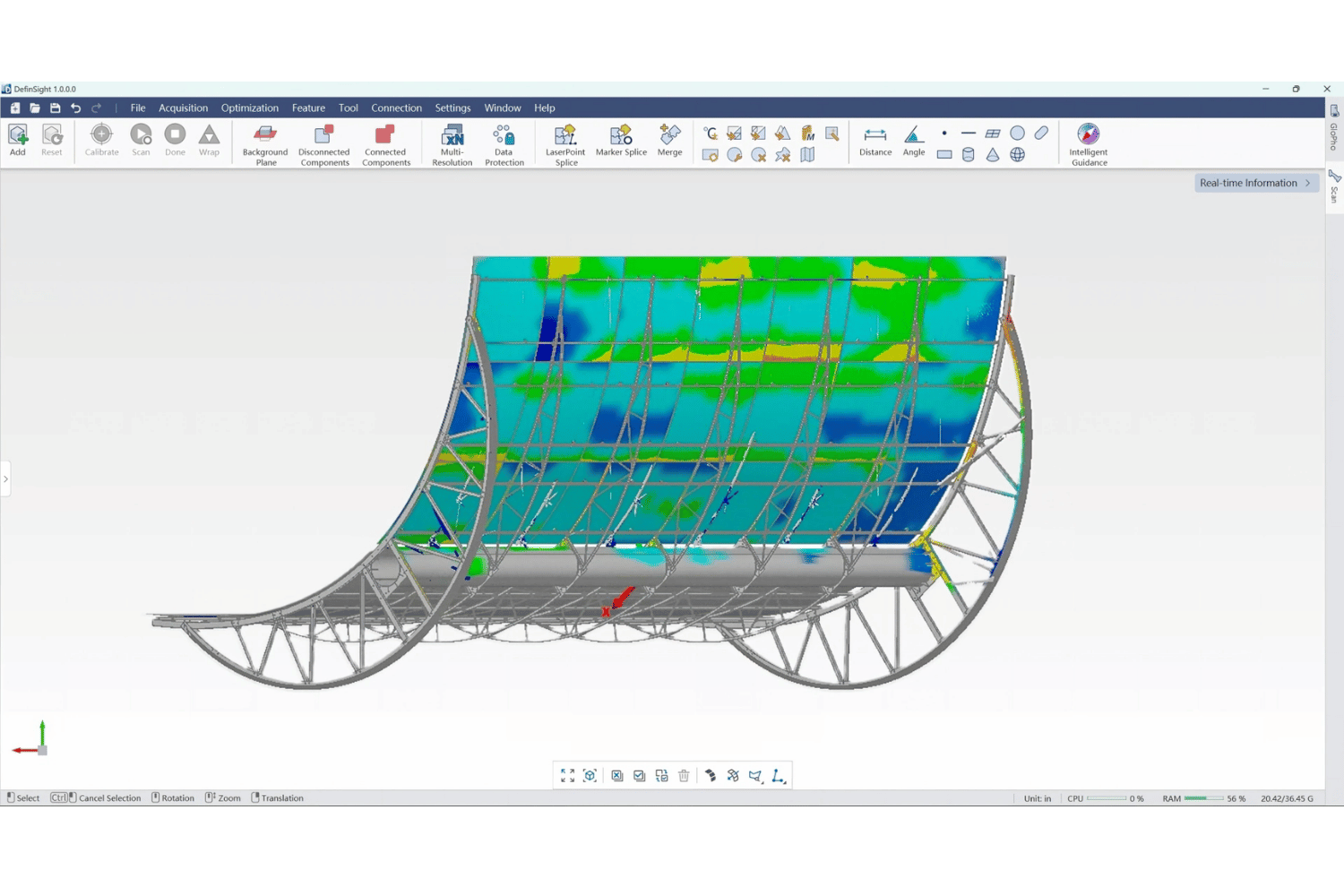

TrackScan Sharp-Z is ISO 10360-13 compliant and uses four-metric accuracy control. Its rigid carbon-fibre icosahedral frame provides lasting structural stability to support consistent measurement performance.
Performance evaluated in accordance with JJF 1951, VDI/VDE 2634 Part 3 and ISO 10360-13.
Technical specifications
The detail behind the performance.
Explore the key scanning, accuracy and operating specifications for the TrackScan Sharp-Z optical 3D measurement system.
Scanning and performance
| Ultra-fast scanning | 140 blue laser lines (Quad-Cross Technology) |
|---|---|
| Hyperfine scanning | 21 blue parallel laser lines |
| Deep-hole scanning | 1 additional blue laser line |
| Laser class | Class II (eye-safe) |
| Depth of field | 400 mm; 800 mm (large depth of field) |
| Hole-position accuracy | 0.05 mm |
Volumetric accuracy by range
| Measurement volume | Volumetric accuracy* |
|---|---|
| 13 m³ (3.5 m) | 0.039 mm |
| 46 m³ (5.2 m) | 0.062 mm |
| 80 m³ (6.2 m) | 0.089 mm |
| 120 m³ (7.2 m) | 0.118 mm |
| 200 m³ (8.5 m) | 0.149 mm |
| 600 m³ (12 m) | 0.198 mm |
Accuracy, connectivity and operating environment
| Volumetric accuracy with MSCAN | 0.039 mm + 0.012 mm/m |
|---|---|
| Form error: sphere | 0.030 mm |
| Form error: flat | 0.040 mm |
| Interface | USB 3.0 and network interface |
| Output formats | .stl, .obj, .ply, .asc, .igs, .txt and .mk2 |
|---|---|
| Operating temperature | -10 to 40°C |
| Operating humidity | 10-90% RH, non-condensing |
| Certifications | CE, RoHS, WEEE and FCC |
* Performance is evaluated in accordance with JJF 1951, VDI/VDE 2634 Part 3 and ISO 10360-13 at Scanology's ISO/IEC 17025-accredited calibration laboratory. Specifications are supplied by Scanology and may be subject to change.
