Purpose-built for 3D scanning
The T3DMC 3D scanning rotation table makes it easier to capture small and medium-sized components from multiple angles while remaining in one working position.
Unlike a general-purpose turntable, it has been engineered specifically for scanning applications. Its flat, stable surface provides dependable support for the component, while internal machine bearings deliver smooth, consistent rotation and long-term durability—even when working with heavier parts.
Protect your reference setup

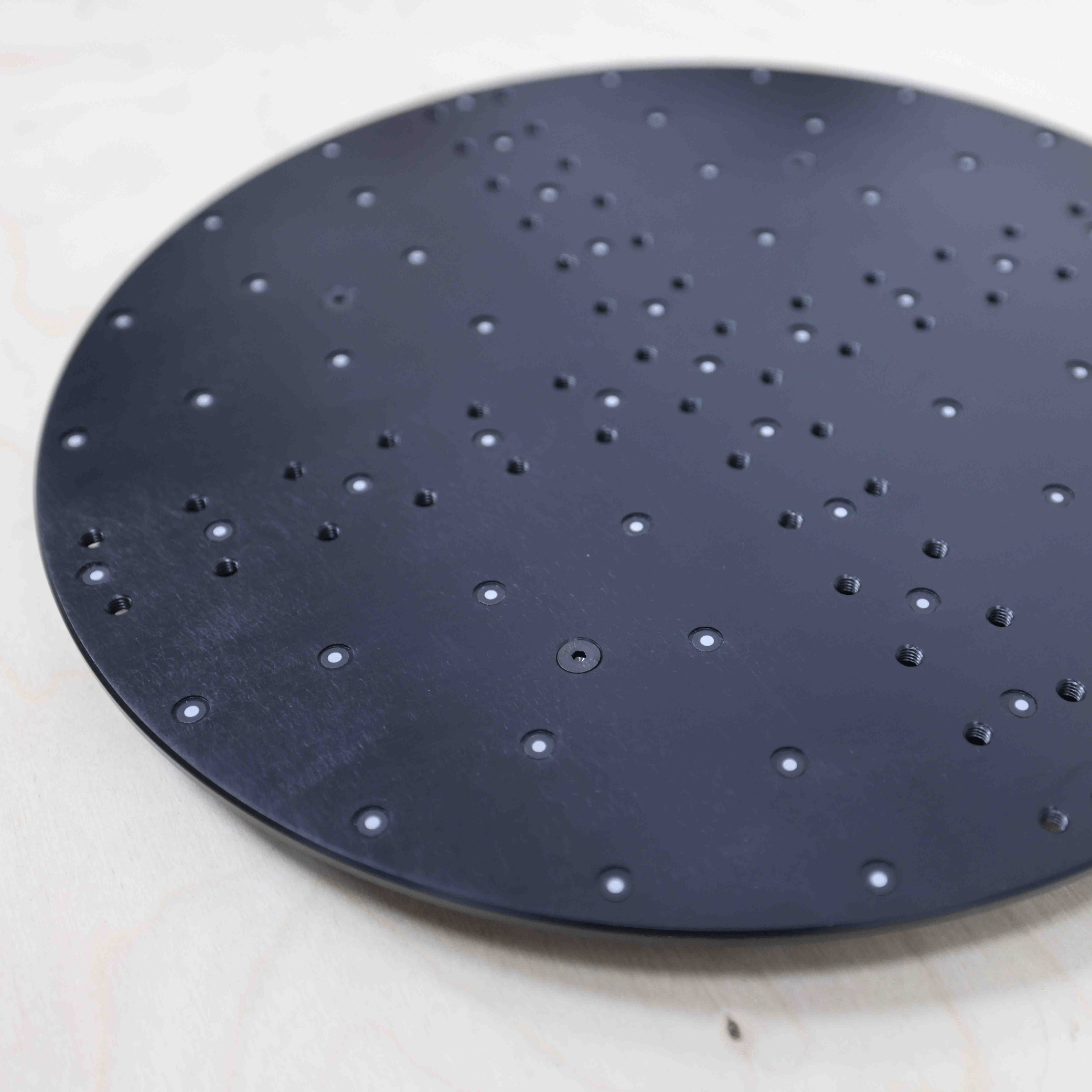

Reference dots are recessed into the top surface of the table, helping to protect them from contact and damage when components are placed or repositioned.
This reduces the need to repeatedly apply new markers and helps preserve a stable reference setup over repeated scanning projects. Rubberised feet underneath the table also help prevent slipping, keeping the complete setup secure as the component is rotated.
Capture components from every angle
Place the component securely in the centre of the table and rotate it through 360° as you scan. This reduces the need to repeatedly move around the part and allows you to maintain a clear view of the scanner and laptop screen throughout data capture.
Once the accessible surfaces have been scanned, the component can be turned over or repositioned to capture any remaining areas before the scan data is aligned into a complete digital model using your scanning software.
Two sizes to suit your setup
The rotation table is available in two sizes:
- 350mm: for smaller components and compact scanning areas
- 500mm: for larger components requiring a broader supporting surface
Both sizes support a maximum load of 80kg. The appropriate table should be selected according to the dimensions, weight, balance and stability of the components being scanned.
A rotation table can be a valuable addition to inspection, reverse-engineering and product-development workflows where components need to be captured efficiently and repeatably from several angles.
If you are unsure which size is most suitable for your scanning setup, read our practical guide to choosing 3D scanning accessories or contact T3DMC before ordering.
TECHNICAL SPECIFICATIONS
- Available sizes: 350mm and 500mm
- Rotation: 360°
- Maximum load: 80kg
- Top surface: Flat and stable
- Rotation mechanism: Internal machine bearings
- Reference markers: Recessed into the top surface
- Base: Rubberised non-slip feet
- Suitable for: Small and medium-sized components
- Application: Component positioning during 3D scanning
