SIMSCAN 30
Small is the new Big
A Small Scanner Capable of Big Things
SIMSCAN 30 is the fastest, lightest, and smallest 3D laser scanner in the world. Small but powerful, SIMSCAN 30 is a revolution in the 3D engineering industry, providing detailed, highly accurate measurements for your projects in an ultra-portable design. Perfect for part inspection, reverse engineering, or 3D printing applications.

Weighing just 570g and measuring a compact 203 x 80 x 44mm, the system boasts an ergonomic and user-friendly design. Robust and reliable, SIMSCAN 30 portable scanner is uncompromising when it comes to capability, with a measurement window of 410mm by 400mm, making it perfect for small to medium sized parts.

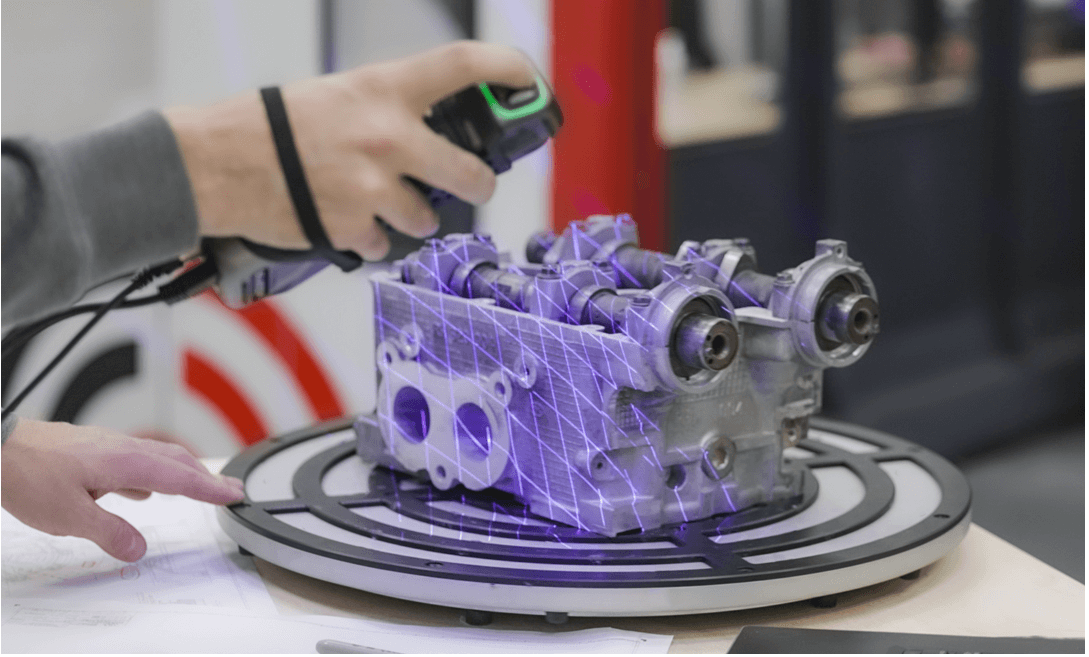

SIMSCAN 30 3D Scanner
Highlights

A powerful laser 3D scanner
SIMSCAN 30 has a reassuringly robust design and features the most advanced laser projection technology to date. From innovative use of depth of field to increased processing power, this scanner has been designed to deliver 3D data with ease.
Compact, lightweight, and easy to use
Ultra-lightweight and small enough to fit in the palm of your hard, SIMSCAN 30 is the go to system for small to medium sized parts.


Fast, really fast
Capturing at over 2 million measurement per second SIMSCAN 30 redefines scanning speed. Clean and accurate data, faster than ever before even in confined spaces and on uncooperative surfaces.
Features

Dual measurement volume
Some projects require scanning of larger areas. Some projects require scanning using a smaller measurement volume. And some projects require both. SIMSCAN 30 has dual volumes which can be used together to get the best of both worlds for when you need it.

Blue laser for cleaner data
SIMSCAN 30 is built with advanced blue laser technologies. Scan full surfaces with ease and in high definition even on difficult surfaces such as carbon fibre, chrome or machined metals.

Aerospace grade aluminium body gives excellent stability
SIMSCAN 30 benefits from a sturdy body that is built to last. Complete with rubber feet for resting when not in use the sensor has a considered design to ensure it delivers accurate measurements every time.

All in one box
Pack everything into one small lightweight travel case and take SIMSCAN 30 with you wherever you need it and capture detailed scan data more quickly than ever before.
Technical Data - SIMSCAN 30
Type | SIMSCAN | ||
---|---|---|---|
Scan mode | Ultra-fast scanning | 11 blue laser crosses | |
Scan mode | Hyperfine scanning | 7 blue parallel laser lines | |
Scan mode | Deep hole scanning | 1 extra blue laser line | |
Laser lines in total | 30 | ||
Accuracy | Up to 0.020 mm | ||
Scanning rate | Up to 2,020,000 measurements/s | ||
Scanning area | Up to 410 mm × 400 mm | ||
Laser class | Class II (eye-safe) | ||
Resolution | Up to 0.025 mm | ||
Volume accuracy | Work alone | 0.020 mm + 0.035 mm/m | |
Volume accuracy | Work with MSCAN-L15 | 0.020 mm + 0.015 mm/m | |
Stand-off distance | 300 mm | ||
Depth of field | 250 mm | ||
Output formats | pj3, asc, igs, txt, mk2, umk, stl, ply, obj | ||
Open formats | pj3, pjs, asc, igs,txt,mk2,umk,refxml,stl,ply,step | ||
Operating temperature range | -10°C - 40°C | ||
Interface mode | USB 3.0 | ||
Dimensions | 203 mm × 80 mm × 44 mm | ||
Weight | 570 g | ||
Patents | CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN111833392A, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN111932465A, CN111694665A, CN306321502S |
Take the stress and complexity out of measurement with SIMSCAN30; quick to set up and easy to use, this 3D scanner is perfect for rapid response scanning when the need for 3D data is urgent.
Download SIMSCAN Brochure
