TrackScan 3D measurement

TrackScan 3D Solution

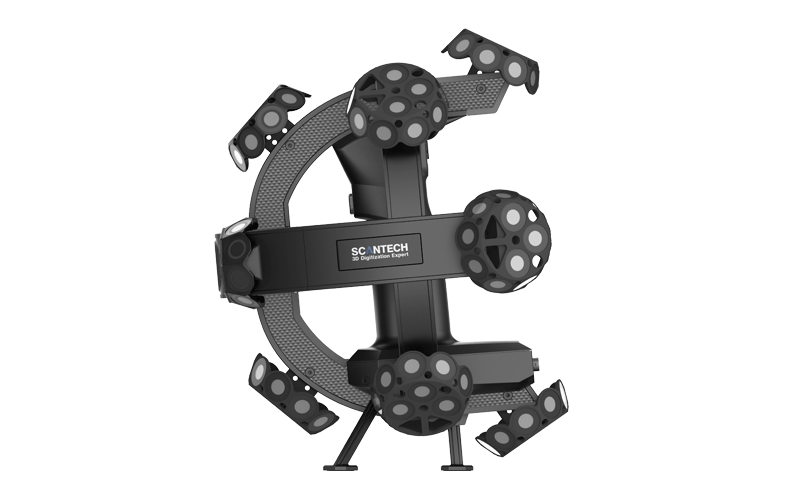

A complete, portable 3D metrology solution providing a new level of portable 3D scanning capability.  Dual lasers, sticker free and with hybrid scanning mode; the TrackScan series is the perfect blend of performance and convenience

TrackScan Portable 3D Scanner: Key Features

  • Lightweight and portable – your complete solution in one product
  • No stickers – just aim and scan
  • Large measurement volume up to 16.5 cubic metres
  • Dual laser: red for speed blue for ultra high detail
  • Hybrid scanning: scan whilst out of view of tracking camera.

Hybrid Scanning Mode

The TrackScan 3D Portable scanner supports both camera tracking and marker tracking modes. When operating in a blind spot of E-Track, the handheld scanning device can recognise local reference markers to allow the user to keep scanning even when in a narrow space, such as vehicle interiors

Flexible Touch Probe

With a point repeatability of 0.030 mm the TS touch probe integrates seamlessly into the scanning process to easily capture geometric features as well as being able to capture areas of a component which the scanner is unable to reach.

The touch probe is perfectly suited to demanding inspection applications for determining the dimensional accuracy of drilled holes, edges and cylindrical components.

  • TrackScan can capture millions of high-precision surface points in just a few seconds.
  • The system cameras track the targets on the handheld scanner, continuously determining
    the position and orientation of the scanner. This means all scan data is automatically captured in the same coordinate system, with no need for stickers or other preparation of the object to be measured.
  • TrackScan is easy to learn and efficient to use, and covers a wide range of measurement volumes.
  • Two laser sources: Standard Mode R and Hyperfine mode B
  • Accuracy: 0.030 mm
  • Resolution: up to 0.020 mm
  • Volumetric accuracy: up to 0.044mm + 0.025mm/m *
  • Measurement rate: 480, 000 measurements/s



*accuracy achievable when combined with photogrammetry
